Sieve (xomtool)

xomtool reads and writes the game’s MOIK/TYPE/STRS/CTNR container format (“XOM”: weapon data, bundles, panel textures, meshes). It ships two builds with the same behaviour:

• C++, dist\tools\xomtool.exe (built by build.ps1), backed by src/xom (a small, portable library: no OS calls, builds for Win32, Linux and WebAssembly).
• Python, tools\xom\xomtool.py (stdlib only), for scripting without a compiler.

Both read and write the same melange-xom/1 JSON model (tools/xom/xom.py’s to_json/load): unpack, bank, and every glTF conversion give byte-identical output between the two builds. The one exception is a PNG file written by convert ... --out texture.png: the C++ build uses stb_image_write and the Python build a small hand-rolled encoder, and their compressed bytes differ even though the decoded pixels are always identical (tools/xom/parity_test.py checks this the right way: pixel comparison for PNG output, byte comparison for everything else, including the glTF JSON and binary buffer, since those come from this tool’s own deterministic layout code and not a third-party codec).

clone, the --nodes forms of convert and the image, deform and UV-layout tooling are C++ only.

Subcommands

xomtool unpack <in.xom|.xan> [-o <out.json>] [--split <dir>]
xomtool pack <in.json|dir> <out.xom>
xomtool inspect <in.xom> [--object <NAME|#N>] [--type <TypeName>]
xomtool diff <a.xom> <b.xom>
xomtool convert <texture.png> --into <file.xom> --as <Name> [--section N] [--mips=0|1] [-o <out.xom>]
xomtool convert <Name> --from <file.xom> --out <texture.png> [--mip N]
xomtool convert <mesh.gltf|.glb> --into <file.xom> --as <Name> [--section N]
                [--material-from <Name>] [--material-file <file.xom>] [--texture <png>] [-o <out.xom>]
xomtool convert <mesh.gltf|.glb> --bundle <out.xom> --as <modId.Name> --section <476..519>
                [--material-from <Name> --material-file <Bundl09.xom>] [--texture <png>] [--scene-bin N]
                [--nodes keep|flat|auto]
xomtool convert <Name|#N> --from <file.xom> --out <mesh.gltf> [--nodes]
xomtool clone <VanillaName> --from <Bundl09.xom> --bundle <out.xom> --as <modId.Name> --section <476..519>
              [--texture <k>=<png> ...] [--deform <script.json>] [--uv-layout <dir>] [--out-gltf <file>] [--allow-shared]
xomtool clone <VanillaName> --from <Bundl09.xom> --list-images | --tree
xomtool bank --from <src.xom> --object <BaseName> --as <NewName> [--set Field=value ...] --out <out.xom>
xomtool report <in.xom> -o <out.md>

Exit codes: 0 ok, 1 usage, 2 input error, 3 write refused. Every error names the object (index or resource name) and the field it was about, where one is involved.

unpack / pack

unpack decodes a .xom/.xan file to the JSON model described in tools/xom/xom.py’s module docstring: object references as {"ref": n}, byte arrays as {"hex": "..."}, a non-finite float as {"f32": "<hex bits>"} or {"f64": "..."}, and everything else as plain JSON. pack is the exact inverse and refuses (exit 3) if the objects it is given cannot be grouped into TYPE-table order, or a field the schema expects is missing.

xomtool unpack Data/Tweak/WEAPTWK.XOM -o weaptwk.json
# edit weaptwk.json ...
xomtool pack weaptwk.json weaptwk_edited.xom

unpack --split <dir> writes <dir>/index.json (the header, TYPE table, string table and an objects array of {"type", "file"} pointers) plus one <dir>/objects/NNNNNN.json per object, numbered by position - handy for putting a large file under version control one object at a time. This is simpler than “one file per named resource” (not every object has a name, and the split form is fully reversible either way): pack <dir> <out.xom> reassembles it exactly.

inspect and diff

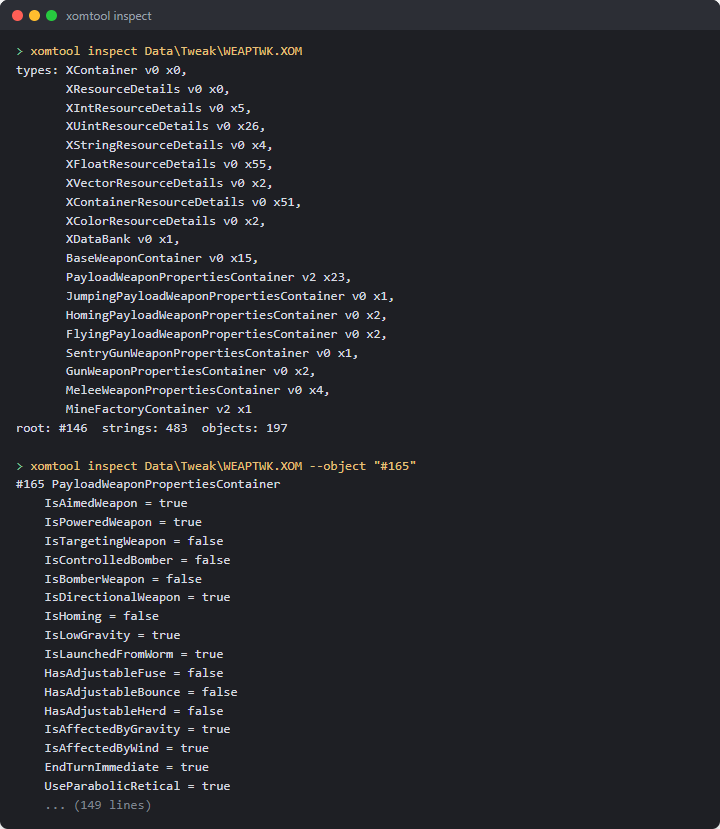

inspect <file> alone lists the TYPE table and the root/string/object counts. --type X or --object NAME/--object #N (1-based) narrows to matching objects and, given --object, prints every field. diff a.xom b.xom compares them object by object (by position) and prints one line per changed, added or removed field, labelled by the object’s ResourceId or Name when it has one:

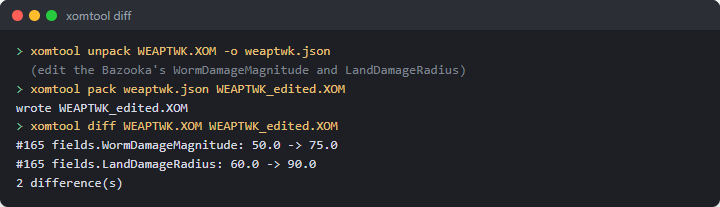

$ xomtool diff WEAPTWK.XOM WEAPTWK_edited.XOM
#112 kWeaponBazooka fields.WormDamageMagnitude: 50.0 -> 75.0
1 difference(s)

convert (textures)

xomtool convert weapon.png --into weapons.xom --as MyIcon.tga
xomtool convert MyIcon.tga --from weapons.xom --out weapon.png [--mip 0]

Texture layout (validated against all 3110 shipped XImages): Format 0 is RGB8, Format 1 is RGBA8, mip levels are back-to-back with no padding, and rows are stored bottom-up (confirmed in game on the weapon panel atlas) while a PNG is top-down, so every conversion flips rows; channel order (RGB) is kept as-is either way. --into appends a new, fully independent XImage (mips regenerated with a 2×2 box filter unless --mips=0, in which case only the given level is stored - the lossless leg of the round trip: PNG → XImage → PNG at level 0 is exact). --from/--out finds an existing XImage by its Name field and extracts one mip level (default 0) to PNG.

convert (static meshes)

xomtool convert model.gltf --into weapons.xom --as MyMod.Payload \
    --material-from Bazooka.Payload --material-file Data/Bundles/Bundl09.xom \
    --texture mytexture.png
xomtool convert MyMod.Payload --from weapons.xom --out model.gltf

Maps the object graph 1:1 onto glTF:

XMeshDescriptor -> XGraphSet -> XInteriorNode -> XGroup -> XShape
    -> XIndexedTriangleSet {XCoord3fSet, XNormal3fSet, XTexCoord2fSet, XIndexSet}

• One primitive per XShape. --from/--out walks the mesh’s "world" graph entry (or its first entry, if none is named "world") and turns every XShape it finds into one glTF mesh and node, with that node’s matrix set from the XGroup chain above it (XTransform’s own cached Matrix field is used directly - see the note below - so no Euler-angle math is needed for this direction).
• Indices are u16 only: a primitive with more than 65535 vertices is refused (exit 3).
• --material-from <Name> deep-copies that resource’s XShape.Shader subgraph (the shader, its texture stage(s), material and lighting objects) from --material-file (or --into’s own file, if --material-file is omitted) into the output, unchanged, and every new XShape uses the copy. --texture <png> additionally replaces the pixels of the one XImage reachable through the copied shader’s TextureStages[*].Texture (refused if there is not exactly one - the well-defined case a template mesh’s shader actually has, not a general material editor). Without --material-from, new shapes get no shader (Shader ref 0).
• Node transforms: --into writes the node’s matrix into a new XTransform’s Matrix field exactly (this is what the engine renders from). Its Translate/Scale fields are derived from that same matrix; Rotate is written as (0,0,0) rather than decomposed, since nothing here reads it back - if your own tooling depends on Rotate/RotateOrder being accurate for a mesh built by xomtool, decompose Matrix yourself.
• Deliberate limitation: --into only appends a new, self-contained run of objects and new TYPE-table entries; it refuses (exit 3, naming the class) if the target file already defines any class the new mesh needs (XShape, XGroup, XTransform, …). Build one small, purpose-built output file per mesh (as the examples above do) rather than injecting into an existing bundle with meshes of its own already - doing that safely needs re-indexing every Ref field in the file, which is future work, not this version’s scope.
• Loading in game: LoadBank only accepts an XDataBank, so a --into file is not loadable by itself. A mod’s mesh is loaded by Melange’s mesh loader (the manifest’s meshes field, see docs/spice.md and docs/meshes.md) from a bundle-shaped bank: see --bundle below.
• Animation and a Blender addon are not in this version; a skinned mesh is reached by cloning a vanilla one (see clone below), not by convert.

convert ... --bundle (a loadable mesh bank)

xomtool convert model.gltf --bundle kindjal.NailBat.xom --as kindjal.NailBat --section 476 \
    --material-from BaseballBat --material-file Data/Bundles/Bundl09.xom --texture nailbat.png [--scene-bin 8]

Writes a complete mesh bank from nothing (no seed file): the shape Meshes.LoadModBank / the engine’s section loader read (see docs/meshes.md). The root object is an XGraphSet whose single entry is {Guid 99cc436e6fbef54b85d2bfcdf9ae4283, Graph -> XMeshDescriptor, Name = <modId>.<Name>}; the descriptor carries ResourceId, SectionId (--section, 476..519 only) and Flags 8, and its own XGraphSet has a "world" entry with the geometry-graph GUID 6ae6dbe4fa866b45a73ff9130e12dfeb pointing at XInteriorNode -> XGroup -> XShape .... The file header comes from --material-file, and the TYPE table lists only the classes the bank uses (counts are computed). The output matches, object for object, the hand-built kindjal.NailBat.xom that loaded in game (xomtool diff reports 0 differences).

• --as must be <modId>.<Name>; --material-from needs --material-file; --texture needs --material-from.
• One mesh per bank. There is no --bundle-append: use one file and one --section per mesh.
• --scene-bin N (0..87) is only validated. The scene bin is not stored in the file; it is the loader’s argument (mesh.load <bank> <modId> <sceneBin>, default 8).
• Without --material-from the shapes have no shader (the mesh will not render in game).
• --texture needs a shader with exactly one texture; a vanilla shader with several (e.g. GasCanister) is refused, pick another mesh’s material (e.g. Grenade.Payload).

The --into form now also writes the "world" entry with the same geometry GUID instead of a zero GUID.

convert <Name> --from <file.xom> --out <texture.png|mesh.gltf> also accepts #N, the 1-based object index shown by inspect/unpack (texture form: an XImage), for the case where several images share a name - Bundl09 has ten called maya:file11/-1: xomtool convert "#6819" --from Bundl09.xom --out bat.png.

convert ... --bundle with several nodes (animation-driven names)

A vanilla mesh is a tree of named nodes, and the clips that animate it address those nodes by name: ClusterBomb’s spin clip drives cluster and cluster|flap1 .. flap4, the Shotgun’s draw clip moves shotgun_pump, and SentryGun is a deep tree (spindle_ring, leg_1, spindle, gun, barrel, ball, …, plus a $animTex0 group for texture animation). A new static model that wants those clips has to keep those names. convert --bundle therefore keeps the glTF node tree:

xomtool convert Shotgun --from Data/Bundles/Bundl09.xom --out shotgun.gltf --nodes     # the vanilla tree, names and all
# ... edit the meshes in Blender, keep the node names ("Shotgun", "shotgun_pump", "eject", "Payload_Spawn") ...
xomtool convert shotgun.gltf --bundle kindjal.Shot.xom --as kindjal.Shot --section 493 \
    --material-from Shotgun --material-file Data/Bundles/Bundl09.xom [--nodes keep|flat|auto]

• Layout written (what Shotgun, ClusterBomb and SentryGun have in Bundl09): XInteriorNode (named <modId.Name>) -> one XGroup per glTF node, named after it, with an XTransform as its Core (the node’s local matrix) -> its first child is a Core-less XGroup <name>Shape holding the node’s XShapes, followed by the child nodes. A node with no mesh (an empty in Blender) is a locator (eject, Payload_Spawn, Smoke1): the group and its transform only. Reading the bank back with clone --tree shows the same tree as the vanilla mesh; the self-test rebuilds ClusterBomb, Shotgun and SentryGun from their own trees and compares every node name and parent.
• XTransform.Rotate carries the node’s Euler angles (radians, R = Rz * Ry * Rx, RotateOrder 0), recovered from the matrix; Matrix, which is what renders, is the glTF matrix exactly. The convention was fitted to the 56 vanilla XTransforms of Bundl09 that rotate about two or more axes (all agree to 3e-3). A clip sets only the channels it animates and the rest keep the stored value, so a rest rotation has to be in Rotate too. (The older flat form writes Rotate as zero; it is left alone so the two builds stay byte-identical.)
• --nodes keep|flat|auto (default auto): auto keeps the tree when the glTF has more than one node and writes the old flat layout (one group per mesh, named <id>_group_<i>) for a lone node, which is what the proven single-mesh bank is; keep forces the tree, flat forces the old layout. A node name used twice draws a warning: clips address nodes by name (a path such as cluster|flap1), so duplicates are ambiguous. When auto picks the tree it prints a note saying so: the tree layout is built from the vanilla trees but has not been loaded in game, only the flat one has. Camera and light nodes with no mesh and no children (a Blender export’s furniture) are dropped rather than written as locators.
• glTF: a node’s mesh is its shape; a mesh name becomes the XShape name (<node>Shape_<material> in vanilla). A node carries one mesh in glTF, so a node that owns several shapes is exported with the first as its mesh and the others as child nodes marked "extras": {"xomShape": true}; convert folds those back into the owning node, so an export / edit / convert round trip keeps the shape count per node. Node transforms may be matrix or TRS.
• convert <Name> --from F --out m.gltf without --nodes is unchanged (flat, matrices composed, as the Python build writes it). --nodes and --nodes keep|flat|auto are C++-only.
• Not authored: animation clips (the new bank has none; the vanilla clip is addressed through the vanilla mesh, see Unverified), skins/bones, and bounds (written as zero, as before).

clone (vanilla meshes: static, rigid-hierarchy and skinned)

xomtool clone <VanillaName> --from <Bundl09.xom> --bundle <out.xom> --as <modId.Name> --section <476..519>
              [--texture <k>=<png> ...] [--deform <script.json>] [--uv-layout <dir>] [--out-gltf <file>] [--allow-shared]
xomtool clone <VanillaName> --from <Bundl09.xom> --list-images | --tree

Copies a vanilla XMeshDescriptor and everything it reaches into a loadable one-mesh bank: the starting point for “the Sheep, but dark grey and lumpier”, where convert --bundle (which writes new static geometry) cannot go because a skinned mesh is more than geometry. The file header is the vanilla file’s; the descriptor’s ResourceId and SectionId are patched (Flags kept); the root XGraphSet entry {99cc436e6fbef54b85d2bfcdf9ae4283, Graph -> descriptor, Name} is added exactly as convert --bundle writes it; the descriptor’s own graph set keeps its "world" entry (GUID 6ae6dbe4fa866b45a73ff9130e12dfeb, the one the engine fetches) and every other entry. The result is read back strictly before the command reports success. --as and --section follow the same rules as convert --bundle.

What is copied is the whole reference closure of the descriptor, not a list of known classes: geometry (XIndexedTriangleSet, XCoord3fSet, XNormal3fSet, XTexCoord2fSet, XIndexSet), the node tree (XInteriorNode, XGroup, XTransform), shaders and textures (XSimpleShader, XMaterial, XOglTextureMap, XImage, …), a skin’s XSkin, XSkinShape, XBones, XJointTransforms and XPaletteWeightSet, and the data the graph set carries (XAnimClipLibrary, XExpandedAnimInfo, collision, path-finder and position data). What it came to for the three meshes the self-test and the prototype banks use:

cloned Sheep (#79 in Bundl09.xom) as "kindjal.ProtoSheep", section 490: 68 objects
  closure by class: XMeshDescriptor 1, XAnimClipLibrary 1, XExpandedAnimInfo 1, XGraphSet 2, XInteriorNode 1,
    XGroup 15, XIndexedTriangleSet 1, XCoord3fSet 1, XNormal3fSet 1, XTexCoord2fSet 1, XPaletteWeightSet 1,
    XIndexSet 1, XTransform 1, XJointTransform 14, XSkin 1, XSkinShape 1, XBone 14, XCollisionGeometry 1,
    XCollisionData 2, XFortsExportedData 1, XDetailObjectsData 1, XSimpleShader 1, XMaterial 1, XLightingEnable 1,
    XImage 1, XOglTextureMap 1
  note: owns #438 XAnimClipLibrary "XCULLEDSheep", 10 clip(s)

Dynamite (static, 2 shapes, 2 images) is 38 objects, ClusterBomb (rigid hierarchy: body and four flap nodes, 2 images) 64, Sheep (skinned, 14 bones, 1 weight set, 10 clips) 68. Every copied object equals its source field for field apart from renumbered references (the self-test compares all of them).

What is refused. A closure that reaches another XMeshDescriptor, or an XAnimClipLibrary that some object outside the closure also references, is refused with the object and the chain of references that reaches it; --allow-shared copies it anyway (the report then says “duplicated shared”). An XAnimClipLibrary reached only through the mesh’s own graph set is not shared: every animated vanilla mesh keeps its clips there (Sheep: XCULLEDSheep with Run, Jump, Run2Sink, Sink, …), so it is the mesh’s own data, copied with it and reported as owns .... (Refusing every clip library would make a skinned clone impossible, which is why the rule is about sharing rather than presence.) An object xomtool could not decode, in the undelimited tail of the file or an opaque payload, is refused with its index and class and the reference chain that reaches it, because its references cannot be followed or renumbered. None of this fires on Bundl09: all 171 of its XMeshDescriptors clone (and re-read strictly) without --allow-shared.

Images and textures

--list-images (no bank written) prints every XImage in the closure in graph order (a depth-first walk from the descriptor: shape 0’s shader and texture before shape 1’s), with its index k, object number, size, format, mip count and the shapes whose shader reaches it:

$ xomtool clone Dynamite --from Bundl09.xom --list-images
Dynamite: 2 image(s), in graph order (the k of --texture k=<png>)
  [0] #6824 "maya:file11/-1"  64x64 RGB8  mips=7  used by: dynamiteShape_dynamitemain_shader
  [1] #6826 "maya:file12/-1"  32x32 RGB8  mips=6  used by: dynamiteShape_dynamitefuse_shader

--texture k=<png> (repeatable) replaces image k’s pixels. The picture is made to fit the original: a different size is resampled to the original width and height (area average down, bilinear up), RGB/RGBA is converted to the image’s own format, and the mip chain is regenerated with the same 2x2 box filter convert uses (an image stored with one level stays single-level). Name, flags and every other object are untouched, which the self-test checks object by object. Get the vanilla picture as a starting point with xomtool convert "#6824" --from Bundl09.xom --out dyn.png (the #N printed above). An image shared by several shaders (ClusterBomb’s four flaps share one) is one object, so one --texture recolours all.

--tree

Prints the node tree the engine renders: node class and name, local position, shapes with vertex and triangle counts, their shader and the image indices, and a skin’s skeleton. It shows the names a clip can address and what --texture indices belong to which part.

--deform <script.json>

Vertex edits that keep the vertex count and order, the index sets, the UVs and the skin weights: only XCoord3fSet positions change, then the normals of the vertices the edit reached are recomputed and the bounds are refreshed. Because nothing a vertex index refers to changes, a deformed clone is a drop-in for the original: same bones, same weights, same clips, same texture layout.

{
  "select": "*",
  "ops": [
    { "op": "region", "box": [[-7.5, -7, -8], [7.5, 9, 7]], "falloff": 2,
      "then": [ { "op": "push", "dist": 0.4 },
                { "op": "noise", "amp": 0.12, "freq": 0.5, "seed": 7 } ] }
  ]
}

The script is an array of ops, or an object with ops and a default select. Ops run in order; each runs on the shapes its select names, a glob (*, ?, case-insensitive) or an array of globs, matched against the shape’s name and the names of the nodes above it ("wool*", "flap?", "gun" for everything under node gun); default *. Positions are the shape’s own stored coordinates: the bind pose of a skinned shape, node-local for a rigid one (see --tree for the node a shape is in).

op	fields	does
scale	s (number or [x,y,z]), about	scales about about (default: the selection’s bounds centre)
translate	t [x,y,z]	moves
bend	axis (x/y/z, default y), dir (default the next axis), amount (degrees), length, about	bends the selection into an arc that turns amount degrees over length toward +dir, starting at about (default: the bounds minimum along axis, centred on the others; length defaults to the remaining extent); beyond the arc the shape continues straight, before about nothing moves
push	dist	moves each vertex dist along its normal (negative = in)
noise	amp, freq (cycles per unit), seed, mode (normal default, or vector)	value noise of the position: a pure function of position and seed, so the result is the same every run, and vertices at one position move together (seams stay closed)
region	box [[x0,y0,z0],[x1,y1,z1]] (or six numbers), falloff, then [ops]	runs then only inside the box, fading smoothly to nothing over falloff outside it; default pivots inside are the box centre; select is not allowed on nested ops

push and noise use the welded vertex normal (summed over vertices at the same position), so a UV or hard-edge seam does not tear. Which way a mesh’s stored normals face relative to its triangle winding is detected per shape, so clockwise and counter-clockwise meshes both push outward. Normals are recomputed area-weighted per index (indices that share a vertex share its normal; split vertices keep their own) for the vertices of every triangle that has a moved corner; the rest keep the artist’s normals. Bounds: each triangle set’s BoundBox becomes the exact new box, and each scene-graph sphere with a radius gains the largest displacement (spheres only ever grow). The whole script is validated and run before anything is written: a bad op, a selector that matches nothing, a coordinate array drawn by two shapes of which only one is selected (or which differ in their index or normal sets, since one edit carries one triangle list), or a result that is not finite fails with a message and the bank is not written.

Skinned meshes. A skinned shape is deformed in its stored (bind-pose) coordinates, and the XBone.PoseMatrix values and XPaletteWeightSet weights are left alone, which is what keeps the clips working. The engine blends each vertex by its bone weights at run time, so a vertex displaced by d in bind pose is displaced by a bone-weighted blend of rotations of d when posed. Neighbouring vertices that are weighted to bones that bend against each other (hips, shoulders, knees) turn their displacements apart, and a displacement that is large next to the spacing of the vertices can open a thin gap or a crease there. Keep deforms near joints small relative to the limb, and fade them out with a region falloff; a global push of a few percent of the limb thickness is safe, a bend or a 30 % scale of a limb is not.

--uv-layout <dir>

For each image a shape samples, writes three files into <dir>: image<k>.original.png (the texture at its own size), image<k>.layout.png (the same, enlarged by an integer factor so the longest side is at least 512 pixels, with every triangle drawn as an outline, one colour per UV island) and image<k>.json:

{ "format": "melange-uvlayout/1",
  "image": { "index": 0, "name": "maya:file11/-1", "width": 128, "height": 128, "mipLevels": 8, "format": "RGB8" },
  "originalPng": "image0.original.png", "layoutPng": "image0.layout.png", "layoutScale": 4,
  "convention": "u to the right, v up: native pixel x = u * width, PNG row y = (1 - v) * height ...",
  "outOfRangeUvs": false,
  "islands": [ { "id": 0, "shape": "sheepShape_sheep_material", "triangles": 54, "vertices": 32,
                 "uvBounds": [0.38, 0.76, 0.74, 0.99], "pixelBounds": [49, 1, 95, 32], "color": "#ff4040" }, ... ] }

An island is a set of triangles joined by shared vertices within one shape (a vertex shared across a UV seam is two vertices here, so seams separate islands). Paint on the original (or the layout, then remove the outlines), save a PNG of the same proportions and feed it back with --texture k=. The layout is drawn from the vanilla clone, before any --texture of the same command. The overlay uses the stored orientation (rows bottom-up in the file, v up), which is the orientation the panel atlas was confirmed in game with; no mesh has been checked in game against this layout.

--out-gltf <file>

Writes the clone’s geometry as glTF (<file> and a sibling .bin) after the texture and deform steps, for a preview in any viewer and as a starting point for convert --bundle: the node tree with names and local matrices, static parts as they are, skinned parts in bind pose and without their skin or bones (a Sheep exports as one lumpy sheep-shaped mesh, no skeleton). It is the same writer as convert <Name> --from F --out m.gltf --nodes.

The prototype banks

xomtool clone Sheep       --from Bundl09.xom --bundle kindjal.ProtoSheep.xom       --as kindjal.ProtoSheep       --section 490 \
    --texture 0=sheep_dark_grey_red_eyes.png --deform sheep_deform.json
xomtool clone Dynamite    --from Bundl09.xom --bundle kindjal.ProtoDynamite.xom    --as kindjal.ProtoDynamite    --section 491 \
    --texture 0=dyn0_red.png --texture 1=dyn1_red.png
xomtool clone ClusterBomb --from Bundl09.xom --bundle kindjal.ProtoClusterBomb.xom --as kindjal.ProtoClusterBomb --section 492 \
    --texture 0=cb0_teal.png --texture 1=cb1_teal.png

xomtool inspect reads them as bundles: root XGraphSet -> XMeshDescriptor (SectionId 490/491/492, Flags 8) -> XGraphSet with the "world" entry; and meshbank_selftest --bank <file> --mod kindjal accepts all three.

bank

xomtool bank --from Data/Tweak/WEAPTWK.XOM --object kWeaponBazooka --as kWeaponMegaBazooka \
    --set WormDamageMagnitude=120 --set PayloadGraphicsResourceID=Cow.Payload --out megabazooka.xom

Builds a minimal, one-entry XDataBank (XContainerResourceDetails + XDataBank + a copy of the named container, with any --set overrides applied) from a container already present in --from, matching what melange::weapons::registry’s bank manifest field loads (see weapons.md). --set Field=value writes a bool/int/float/string field by name (refused, exit 2, if the field does not exist or is a type --set cannot write, such as a ref or an array); the field’s own type decides how value is parsed.

level

xomtool level unpack <in.xan> [--xom <level.xom>] [--hmp <in.hmp>] -o <scene.json> [--blobs <dir>]
xomtool level build --patch <patch.ergpatch.json> --game <dir> --out <dir>
xomtool level diff <a.json> <b.json>

The C++-only counterpart to Erg’s own scene model (src/erg/scene.h, patch.h): unpack reads a base map’s .xan (plus its level .XOM and .hmp when given) into the same erg-scene/1 JSON erg.md works with, with voxel and height-map blobs as separate files next to it; build applies an erg-patch/1 file to its pinned base and writes the map files a pack needs under --out (this is exactly what an exported Source-form pack’s build.ps1 runs); diff prints the field-by-field differences between two scene JSON files. There is no Python build of level — src/erg (not tools/xom) is the reference implementation, since it also has to run inside the game and Melange.exe.

report

xomtool report <file.xom> -o <out.md> writes a short Markdown table of an XDataBank’s named resources (name, class, field count), or a plain type/count listing for any other file - the generalised form of tools/xom/weapons_report.py (which stays as the detailed, hand-annotated WEAPTWK.XOM report checked into the repo).

The JSON model

See tools/xom/xom.py’s module docstring for the full field-by-field description (format: "melange-xom/1"); src/xom/json.{h,cpp} is the C++ mirror, checked byte-for-byte against it for the whole shipped asset set (tools/xom/parity_test.py, 943/943 files) and for the unpack/pack/bank/convert fixtures above.

Self-tests

• Offline, no game needed: tests/xom_convert_selftest.cpp (built by build.ps1 as xom_convert_selftest.exe, part of scripts\selftest.ps1) runs read-only against an installed game copy when given --game <dir> (skipping, not failing, without one): the panel icon’s PNG and lossless round trips, Factory.Proj.Bazookashell’s glTF and XOM round trips, and the bank builder against a kWeaponMegaBazooka fixture. The mesh pipeline added with clone is covered too (synthetic cases run without a game: node-preserving bundles and the glTF tree round trip, Euler decomposition, texture resampling, every deform op and every deform error; with --game: clone of Dynamite (static), ClusterBomb (rigid hierarchy) and Sheep (skinned) with closure classes, patched name and section, root and world GUIDs, bone and weight counts, every copied object equal to its source, image replacement touching only the target image, a deform leaving weights, bones, UVs and indices byte-identical, the refusals, and rebuilding ClusterBomb, Shotgun and SentryGun from their node trees). src/xom/xom_roundtrip.cpp (existing, unchanged by this component) keeps checking the underlying binary format itself, 943/943 files.
• Parity, needs an installed game copy: tools\xom\parity_test.py --game <dir> --xomtool <path to xomtool.exe> --bundles --maps runs both builds over the same 943 files plus the bank/convert fixtures and compares outputs (see the note on PNG bytes above).

Unverified in game

Everything in clone, --deform, --texture, --uv-layout and --nodes is checked offline (the self-test, xomtool re-reading its own output strictly, meshbank_selftest --bank accepting the prototype banks, and 171 of 171 vanilla meshes cloning). None of the following has been run in a game:

• A cloned bank loading and rendering at all. The loader chain is proven for a convert --bundle bank (the nail bat); a clone is the same root/descriptor/world shape plus the extra graph-set entries (clips, collision), which the engine’s adopt step has not been shown to accept.
• Animation of a cloned skinned mesh. The clone carries the vanilla clip library (XCULLEDSheep, 10 clips), skin, bones and weights unchanged, so the clips should drive it, but nobody has seen it. Two open questions: whether the engine finds a mesh’s clips through its own graph set (what the layout suggests) or through a name registry, in which case a second XCULLEDSheep may collide with the vanilla one; and whether a weapon’s AnimSmallJump=Run-style fields resolve against a clone’s name. A rigid-hierarchy clone (ClusterBomb’s spin) has the same question.
• A new static model driven by a vanilla clip (Shotgun pump, ClusterBomb flaps) built with convert --bundle --nodes: the names and nesting match the vanilla tree exactly, but whether a clip bound to a vanilla mesh instance addresses the new model’s groups is untested. Texture-animation groups ($animTex0) are kept as plain named groups.
• The deformed skinned Sheep posed. The bind-pose vertex offsets are blended by the unchanged weights; whether the prototype’s 0.4 push looks right (no gaps at the hips and shoulders) is exactly the thing to look at.
• UV orientation of --uv-layout against a rendered mesh (v up, rows bottom-up, as the weapon-panel atlas was confirmed) and of --texture on a mesh.
• Bounds. Triangle-set boxes and scene-node spheres are refreshed after a deform and written as zero by convert --bundle; how the engine uses them for culling is not known beyond the existing proven bank (zero bounds, drawn).
• Euler Rotate in convert --bundle --nodes matches the vanilla XTransforms numerically (3e-3); a clip that rewrites the rotation in game has not been seen to agree with it.
• Two cloned banks of one mesh in a session, and sections. As in meshes.md: one section per bank.

Limitations

• unpack --split writes one file per object (numbered by position), not one file per named resource - not every object has a name, and per-object is simpler while staying fully reversible.
• convert’s texture-injection form (--into/--as) always appends a brand new XImage; it has no in-place “replace an existing texture by name” mode (that need is covered by --material-from/--texture on the mesh side, and by editing unpack’s JSON directly and packing it back for anything else).
• convert’s mesh-injection form never rewrites an existing TYPE-table run (see above); it is a refusal, not a silent partial write.
