Weapon mods

A weapon clone is a new weapon that reuses one of a small set of vanilla weapons’ code, with its own name, icon, stats and Lua behaviour. dist\Mods\mega-bazooka (shipped disabled) is a complete, working example; this page is the field-by-field reference. It assumes you’ve already read spice.md for the rest of a mod’s manifest.

How a clone works

A clone is not a new weapon class — it’s the same code as one of a handful of vanilla weapons (the base), given its own name, its own stats and its own panel cell. Concretely:

• Only the free panel cells take a clone: 29, 39 and 40. A match has at most 3 clones in total, across every enabled mod.
• Firing, flight, impact and the explosion all run the base’s own code — a Bazooka clone flies and explodes exactly like a Bazooka. What’s different is a handful of container fields (set in the manifest) and, while the clone is selected, the worm’s weapon name.
• Ammo, delay, AI use, crates and the scheme all follow the base. A clone can’t have its own ammo count or its own delay in this version (that’s planned for a later milestone); if the base is in the scheme, so is every clone of it, with the base’s ammo and delay. Achievements and stats count a clone as its base.
• A clone exists only inside a match that allows sim mods (an offline game, or an online match where every peer has the same content). Outside such a match nothing is changed: no cell, no name, no hook.

The weapons array

Add a weapons array to spice.json (schema: spice-1.schema.json). It’s only allowed in a kind: "content" mod, and it’s capped at 3 entries in total across every enabled mod — the first mods in load order get the free cells; a mod that doesn’t fit is refused with the reason on the Mods page.

"weapons": [{
  "name": "kWeaponMegaBazooka",
  "base": "kWeaponBazooka",
  "cell": 29,
  "set": { "WormDamageMagnitude": 120, "WormDamageRadius": 123.75, "LandDamageRadius": 90,
           "ImpulseRadius": 165, "PayloadGraphicsResourceID": "Grenade.Payload", "Scale": 10,
           "LaunchSfx": "weapons/SheepBaa" },
  "panelIcon": "icons/megabazooka.png",
  "hudIcon": "mega-bazooka.hud.tga",
  "text": { "name": "Mega Bazooka", "help": "Like a bazooka, only more so." }
}]

Field	Rules
name	A new resource name: kWeapon + a capital letter + 2-40 letters/digits (^kWeapon[A-Z][A-Za-z0-9]{2,40}$). Can’t be a vanilla name, and can’t start with kWeaponCluster or kWeaponFactory. Must be unique across every enabled mod.
base	One of the whitelisted bases below. Anything else is refused at parse time with “not clonable in this version”.
cell	29, 39 or 40. Optional — left out, the clone takes the first free cell in load order. Two mods asking for the same cell: the later one in load order is refused.
bank	Optional: an xomtool-built .xom under assets/data/ holding a container named name, of the base’s class, taken instead of a plain copy of the base (set still applies on top). Build one with xomtool bank (xomtool.md). A bank carries weapon properties only, not meshes — meshes come from the meshes field, see “Meshes and sounds” below.
set	Container field name → value, typed against the base’s own schema (xom_schema.inc): a number for an F32/integer field, true/false for a Bool field, a string for a String field. An unknown field name or a value of the wrong type refuses the mod at parse time, naming the field.
panelIcon	A path under assets/: a PNG, 64×64 (or a multiple, box-filtered down), RGBA.
hudIcon	A file name under assets/loose/, a .tga, named <your mod id>.* (never a bare vanilla-looking name — see “Icons and loose files”).
text	{ "name", "help" } for the panel. Used when the game build supports it (this build does — see “Panel name” below); ignored otherwise, logged once.

Bases

Only these five are clonable in this version. Each one is on the “ordinary” code path that doesn’t special-case its own container name, which is what makes cloning it safe:

Base	Notes
kWeaponBazooka	The reference base; every check below was run against it directly.
kWeaponGrenade
kWeaponHolyHandGrenade
kWeaponBananaBomb	Bomblets spawn as the (unrenamed) vanilla Bananette.
kWeaponGasCanister	Its explosion does no direct damage, so a damage multiplier has no visible effect; poison from a clone isn’t distinguished from poison from the vanilla canister.

Weapons that pick their behaviour from their own name (Sheep, Homing Missile, Poison Arrow, guns, melee, and utility items), and cell takeover beyond 29/39/40, are not in this version.

Lua: wum.sim.weapons

This is a sim-script API (entry.sim, Lua 5.0 with float numbers — see the developer guide’s “Sim scripts” section for the base rules). It isn’t part of lua-api.md, which covers only the always-on client Sandbox; the sim match VM’s weapon surface is documented here instead.

Function	Notes
wum.sim.weapons.list()	An array of {name, base, cell, k, live} for every declared clone.
wum.sim.weapons.on(event, name, fn)	event is "fire", "tick", "impact" or "explosion"; name is a clone’s name or "*" for every clone. Returns a handle for off.
wum.sim.weapons.off(handle)	Removes a subscription.

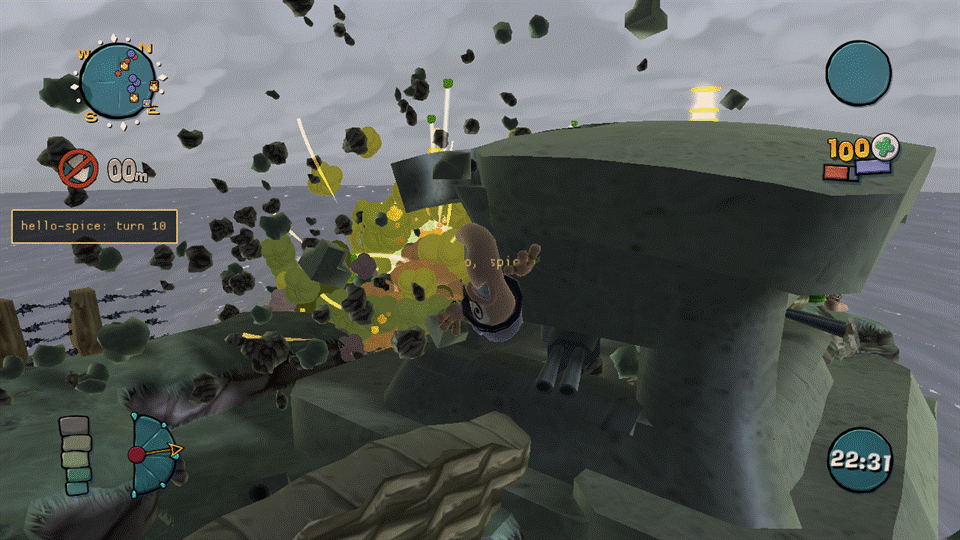

wum.sim.weapons.explode(dx, dy, dz)	Inside an explosion handler only: one more explosion at the original position + (dx, dy, dz), run after the original, in the same tick. Returns true, or nil, reason — "not in explosion" outside a handler, "full" past [Weapons] ExtraPerExplosion (default 8) extras from one explosion, "range" if any axis is over 2000 units. Extras raise no further events (no recursion).
wum.sim.weapons.active()	The clone name the active worm currently holds, or nil.

fn(event, name, tick, ...) gets the event name, the clone name, the sim tick, and then:

• fire: nothing further.
• tick: no position in this build. A future build may add x, y, z once the engine’s live payload position is found (see “What doesn’t work yet”); until then, only rely on event, name and tick.
• impact: the Payload.* message name (Payload.CollideWithLand, Payload.CollideWithWater, Payload.DisarmPlane, Payload.ExpiryPlane, …).

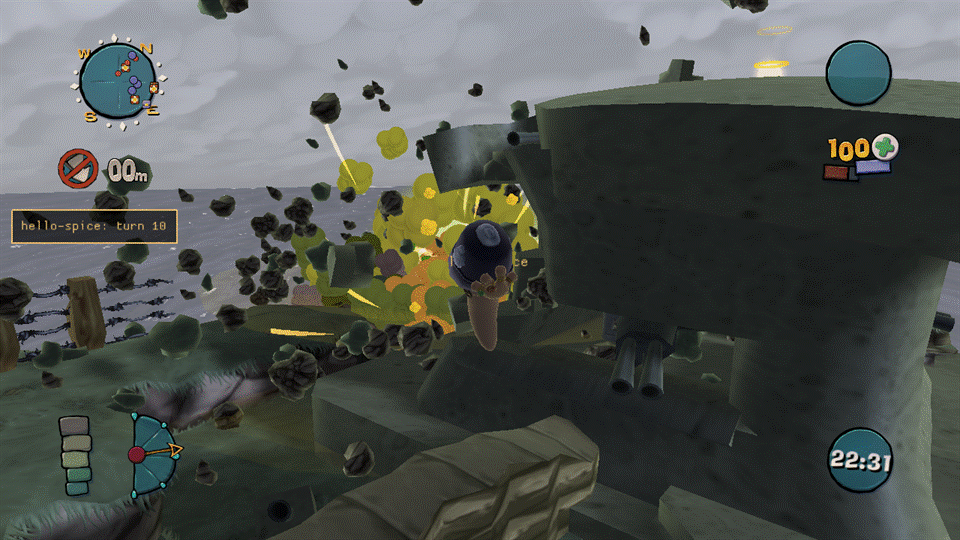

• explosion: x, y, z, the explosion’s position. Call wum.sim.weapons.explode from inside this handler only.

There’s no damage event in this version (a clone’s damage isn’t reliably attributable — see below), and no spawn or detonate event.

Determinism. Every event fires at the same logic tick on every peer, with no randomness added and no message posted by Melange itself — a handler is exactly as deterministic as any other sim-script code. Keep handlers side-effect-light: they run under the same per-call instruction budget as any other sim callback ([SimBridge] InstrPerCall), and a handler that faults three times is disabled for the rest of the match.

To read or change a clone’s own fields during the match’s Init (once, before the first turn), use the existing wum.sim.weapon(name):get(field) / :set(field, value) from the README’s Sim scripts table, by the clone’s name. set takes f32, i32, u32, u16, u8, bool and string fields (so counts such as NumBomblets and delays such as LaunchDelay can be changed); a u16 field takes 0 to 65535 and a u32 field 0 to 16777216, because the sim’s Lua numbers are float32 and can’t name every larger integer, so a u32 above that is refused (Lua itself already rounds a literal 16777217 to 16777216, which is accepted; get of a u32 above 2^24 returns the nearest float32). Setting u32 and u16 fields is covered by the offline self-test but hasn’t been confirmed in a running match.

Icons and loose files

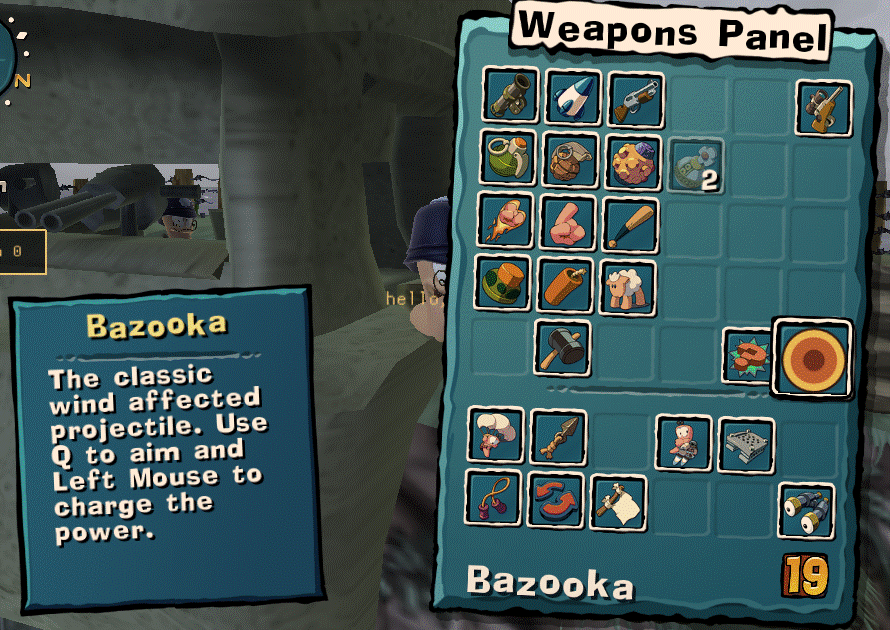

• Panel icon (panelIcon): decoded once at start-up and written into a free slot of the weapon panel’s own icon sheet the next time it’s built. It shows in the weapon panel automatically; nothing else to do.
• HUD icon (hudIcon): a loose .tga under assets/loose/. It must be named <your mod id>.<anything> — mega-bazooka.hud.tga for this mod — never a bare name that could shadow a vanilla file. Shown on the HUD while the clone is selected.
• Both are presentation only: they never affect the simulation, and a mismatched or missing icon file is refused at load with a reason, not a crash.

Meshes and sounds

• PayloadGraphicsResourceID (and Payload2ndGraphicsResourceID) can name any vanilla payload mesh already used in the match — this is confirmed working (the sample points its shell at Grenade.Payload, scaled up with Scale).
• A mod-supplied mesh comes from the manifest’s meshes field (not from bank, which carries weapon properties only): list a mesh bank built with xomtool convert --bundle, whose resource names all start with <modId>., and the game loads it at the main menu. A clone’s set or wum.sim.weapon(name):set(...) can then name the mesh in a *GraphicsResourceID field: wum.sim.weapon("kWeaponBaseballBat"):set("WeaponGraphicsResourceID", "kindjal.NailBat") made the worm hold the mod’s baseball bat in a game test. What is not yet tried: a mod mesh in PayloadGraphicsResourceID / Payload2ndGraphicsResourceID (the projectile) or an AttachedMesh (effects may need another scene bin, see meshes.md), a mesh on a weapon clone, and a match with other players (every peer needs the same banks; they are under assets/, so the content hash covers them). Naming a mod mesh the mod did not load, or one that failed to load (see [meshes] in Melange.log), makes the weapon fail to create its mesh rather than fall back to a vanilla one. Details, limits and the engine side: meshes.md.
• *Sfx fields (LaunchSfx, DetonationSfx, …) can be reassigned to any existing FMOD event name your game already ships (weapons/SheepBaa, for example). Whether this has an audible effect hasn’t been confirmed in this build — the sample sets LaunchSfx as a demonstration, but treat it as unverified until your own test hears it. New sound projects (your own .fev/.fsb) aren’t supported.

Renaming vanilla weapons

A content mod can give vanilla weapons new panel names and help text with weaponText (the manifest form is in spice.md), for example a weapon-overhaul plugin that wants “Nail Bat” instead of “Bazooka”. It changes what the weapons panel and the floating weapon-name tag above the worm show and nothing else: the simulation, ammo, the scheme and the vanilla string tables are not touched. The one container field written is the cosmetic DisplayName (below).

The tag reads the weapon container’s DisplayName string, not the panel keys. So for a rename that has a name, when the match goes live Melange also points that container’s DisplayName at the same Text.wt<nnn> key, and puts the original string back at match end (or before the next match’s setup if the match was not closed). A help-only rename leaves DisplayName alone. This is the same write on every peer at match creation, behind the same gate as clones, of a string key no simulation number reads, and the Wormsign contribution hashes only clone containers, so it is not part of it. If the field cannot be read or written, the log warns and the panel rename still applies; the tag keeps the vanilla name. The log line weaponText: DisplayName set for N of M name rename(s) reports the count per match.

How it works: the game builds the panel text from the keys Text.<name> and HelpText.<name><n>, where <name> is the weapon’s name read from its name table. For each rename, Melange registers the strings under keys of its own (Text.wt<nnn> and HelpText.wt<nnn>0, where <nnn> is the rename’s index in load order; the key is short and fixed width so it stays within the 48 characters a clone name is capped at, and carries nothing from the mod id or the weapon) and, when the game asks for the panel text, hands it that key in place of the weapon’s name. Which name-table slot belongs to which rename is resolved once per match, so the hook is an array lookup and a pointer compare. While a clone is selected, the base weapon’s own cell keeps its rename and the clone’s cell shows the clone’s name. A clone that declares no text of its own copies its base’s vanilla text, so it does not pick up the base’s rename.

Limits and rules:

• name is 1-24 and help 0-160 printable ASCII characters; at most 64 entries per mod. help is one line. Leaving name or help out keeps the weapon’s own text for it.
• A rename applies only to a weapon the game has a container and a name-table slot for. An entry that fails either check is skipped with a [weapons] weaponText ... warning and the panel keeps the vanilla text.
• A weapon can be renamed by one mod only. If two enabled mods rename the same weapon, the later one in load order is refused as a whole (like a cell conflict) and the log names the weapon and the earlier mod. A key can’t be a clone name; a clone sets its own text.
• It needs a live content match, the same gate that makes clones exist. In the menus, in a match where content mods are off and in a match that does not allow sim mods the panel is byte-identical to vanilla: the strings are registered per match and the hook is switched off at match end.
• Every peer needs the same mod. The renames are part of the content hash and of the weapon hash (mlg.wpn), so a peer with different names, or without the mod, is a mismatch for the weapon gate: a host refuses to start against it ([Handshake] WeaponGate=refuse) and a joiner gets the same modal as for clone weapons (whose text still says “clone weapons”). A mod with weaponText and no clones counts as weapon content for that gate.
• It is independent of clones: a rename-only mod installs only the two panel text hooks, and a clone that fails to go live does not take the renames with it.

The weapons.state test verb lists the declared renames, the name-table id each resolved to and whether its name and help were registered. The weapons jlog category records a weapon_text entry per match (declared and applied counts).

Verified in a running game, on one machine: the panel rename and the HUD tag. Everything else here was built and tested offline against a fake engine only. Not verified:

• That the HUD tag follows the rename on a peer other than the one tested, and in the other places the container’s DisplayName is read (if any).
• That the help text key format (HelpText.<name>0, one line) matches for every weapon. It is the format a clone’s own help already uses, but a weapon whose vanilla help has several lines uses HelpText.<name>0 to 3, and whether the game stops at the first missing index is not confirmed.
• That every kUtility* name is in the name table the panel hook reads. An entry whose name is not found is skipped with a warning, so this fails safe.
• Weapon names shown elsewhere (crate pickup message, end-of-match statistics, replays, the schemes screen) are read from other paths and may keep the vanilla name.

Replacing vanilla icons

A content mod can replace the weapons-panel icon and the HUD icon of vanilla weapons with weaponIcons (the manifest form is in spice.md), for example a weapon overhaul that turns the Bazooka into a ripper. It is presentation only: no container, ammo or scheme value is touched.

"weaponIcons": { "kWeaponBazooka": { "panelIcon": "icons/ripper.png", "hudIcon": "kindjal.ripper.hud.tga" } }

Panel icon. The game draws panel icons from three 256x256 sheets (“Weapon Panel Icons1” to “3”), 16 slots of 64x64 each, and a weapon’s panel cell holds an icon code (sheet | slot << 8). When the registry goes live for a match (the same gate as clones and weaponText) Melange reads the code from the vanilla weapon’s own panel cell and has the upload patcher write the PNG over that slot, the next time the sheet is uploaded. The PNG is alpha-blended onto the vanilla pixels, so use an opaque icon unless you want the old one to show through the transparent parts. The first time a slot is written its vanilla pixels are copied aside; from then on every upload of that sheet first puts the copies back and then writes the rules that are active, so when a match ends (or a rule is gone) the vanilla icon returns at the next upload of the sheet. A clone without a panelIcon of its own shows its base’s icon, so it shows the replacement too.

HUD icon. The HUD loads the active weapon’s icon by file name (Data\HUD\Weapons\bazooka.tga and so on). The rule is keyed by that name, not by the worm’s weapon: when the file about to load is the vanilla file of a weapon with a hudIcon rule, and the rule is armed for this match, the mod’s file is loaded instead. The path and letter case are ignored. The weapon-to-file table is the container name without kWeapon/kUtility, lower-cased, matched to the file stem (HolyHandGrenade to hollyhandgrenade.tga, HomingMissile to HomingMissile.tga, a few aliases such as ClusterBomb to clustergrenade.tga); a weapon with no file in the table gets a warning and keeps its HUD icon. While a clone with its own hudIcon is selected, the clone’s icon wins.

Rules:

• A rule applies only to a weapon the game has a container, a name-table slot and (for panelIcon) a panel cell for. hudIcon also needs the mod’s assets/loose as a search path and the file to exist. Anything missing is skipped with a [weapons] weaponIcons ... warning and the vanilla icon stays; each piece (panel, HUD) fails on its own.
• A weapon can have icons from one mod only; the later mod in load order is refused as a whole. A key can’t be a clone name.
• It needs a live content match: in the menus, in a match with content mods off and in a match that does not allow sim mods the panel and HUD are vanilla, as for clones.
• Every peer needs the same mod. The rules (weapon, file names) are part of the content hash and of the weapon hash (mlg.wpn), so a peer with different icons is a mismatch for the weapon gate, like different weaponText.
• Per match the log lists which rules are armed (weaponIcons <weapon> id N: panel=.. hud=.. and a summary line); the weapons.state test verb lists the declared rules and what each resolved to, and the first HUD substitutions are logged.

Not verified in a running game (built and tested offline against a fake engine only):

• That the panel icon appears: the slot is found from the weapon’s panel cell and written at the sheet’s upload, which works for clone slots (sheet 3, slots 9 to 15), but “Weapon Panel Icons1” and “2” have not been patched in a game.
• When the vanilla pixels return. The patcher restores from its copy at the next upload of that sheet. If the game builds a sheet only once per session, the texture already on the GPU keeps the mod’s icon after the match until it is rebuilt (a restart). Whether it is rebuilt between matches is not confirmed.
• That the name the HUD hook sees is the bare or relative file name of the vanilla .tga (the match ignores any folder), and that substituting a bare <modId>.*.tga name works the way it does for clones.
• The weapon-to-file table is built from the file list and the container naming; names such as kWeaponClusterBomb or kWeaponMine are guesses. A name that is not in the table logs a warning instead of replacing anything.
• Online with other players, and spectators: the HUD swap is by file name, so it follows whatever the local HUD loads.

Online behaviour

• A match only creates clones when every peer’s content matches (the same rule M2 already uses for sim mods in general). If a peer is missing your mod, or has a different version of it, clones stay off for everyone in that match — nothing is ever sent about a clone to a peer that doesn’t have it.
• In this build, a host whose content declares clones refuses to start the match against a peer that doesn’t match ([Handshake] WeaponGate=refuse), instead of silently playing with clones off. The lobby panel names which peer and what differs, and the lobby itself stays open — fix the mismatch (or have the other player update) and start again.
• If you join a lobby that uses clone weapons you don’t have (or have a different version of), you get a choice, never an automatic kick: a modal names the mods and lets you leave.
• A clone match replays like any other. A replay with no content mods plays back fine; one recorded with content mods by an older Melange, or with a different version of your weapon content, is refused as “content differs”, the same as any other content mismatch.

Troubleshooting

• The weapons jlog category (and the overlay/Oasis log) records every declared clone, the free-cell table, and whether the clone hooks are actually installed. If your clone doesn’t show up, check the Mods page first — a manifest error refuses the whole mod with a specific reason (an unknown set field, a taken cell, a bad name, …).
• A clone only exists inside a match that allows sim mods. In the menu, or in a match where clones were refused (a content mismatch online), everything about the panel, the weapon names and the icon sheet is byte-identical to vanilla — there is nothing to see, and that’s by design.

What doesn’t work yet

This build is honest about a few gaps rather than silently doing less than it says:

• tick carries no position. The engine evaluates a flying payload’s position on demand from data this build couldn’t turn into a live x, y, z every tick; only the explosion event has a position. If you need a projectile’s position mid-flight, you don’t have one yet.
• No damage event. A clone’s explosion damage happens inside the same engine call that posts the explosion, which is good for determinism but means it can’t be cleanly separated as its own event yet.
• Custom meshes are partly verified. The meshes field and a held mod mesh work in game; a mod mesh as a projectile or an attached effect has not been tried. See “Meshes and sounds” above and meshes.md.
• Sound fields are unverified. See “Meshes and sounds” above.
• Separate clone ammo and delay, and name-compare bases (Sheep, Homing Missile, …) are not in this version.
