Weapon mods

A weapon clone is a new weapon that reuses one of a small set of vanilla weapons’ code, with its own name, icon, stats and Lua behaviour. dist\Mods\mega-bazooka (shipped disabled) is a complete, working example; this page is the field-by-field reference. It assumes you’ve already read spice.md for the rest of a mod’s manifest.

How a clone works

A clone is not a new weapon class — it’s the same code as one of a handful of vanilla weapons (the base), given its own name, its own stats and its own panel cell. Concretely:

• Only the free panel cells take a clone: 29, 39 and 40. A match has at most 3 clones in total, across every enabled mod.
• Firing, flight, impact and the explosion all run the base’s own code — a Bazooka clone flies and explodes exactly like a Bazooka. What’s different is a handful of container fields (set in the manifest) and, while the clone is selected, the worm’s weapon name.
• Ammo, delay, AI use, crates and the scheme all follow the base. A clone can’t have its own ammo count or its own delay in this version (that’s planned for a later milestone); if the base is in the scheme, so is every clone of it, with the base’s ammo and delay. Achievements and stats count a clone as its base.
• A clone exists only inside a match that allows sim mods (an offline game, or an online match where every peer has the same content). Outside such a match nothing is changed: no cell, no name, no hook.

The weapons array

Add a weapons array to spice.json (schema: spice-1.schema.json). It’s only allowed in a kind: "content" mod, and it’s capped at 3 entries in total across every enabled mod — the first mods in load order get the free cells; a mod that doesn’t fit is refused with the reason on the Mods page.

"weapons": [{
  "name": "kWeaponMegaBazooka",
  "base": "kWeaponBazooka",
  "cell": 29,
  "set": { "WormDamageMagnitude": 120, "WormDamageRadius": 123.75, "LandDamageRadius": 90,
           "ImpulseRadius": 165, "PayloadGraphicsResourceID": "Grenade.Payload", "Scale": 10,
           "LaunchSfx": "weapons/SheepBaa" },
  "panelIcon": "icons/megabazooka.png",
  "hudIcon": "mega-bazooka.hud.tga",
  "text": { "name": "Mega Bazooka", "help": "Like a bazooka, only more so." }
}]

Field	Rules
name	A new resource name: kWeapon + a capital letter + 2-40 letters/digits (^kWeapon[A-Z][A-Za-z0-9]{2,40}$). Can’t be a vanilla name, and can’t start with kWeaponCluster or kWeaponFactory. Must be unique across every enabled mod.
base	One of the whitelisted bases below. Anything else is refused at parse time with “not clonable in this version”.
cell	29, 39 or 40. Optional — left out, the clone takes the first free cell in load order. Two mods asking for the same cell: the later one in load order is refused.
bank	Optional: an xomtool-built .xom under assets/data/ holding a container named name, of the base’s class, taken instead of a plain copy of the base (set still applies on top). Build one with xomtool bank (xomtool.md). A bank carries weapon properties only, not meshes — see “Meshes” below.
set	Container field name → value, typed against the base’s own schema (xom_schema.inc): a number for an F32/integer field, true/false for a Bool field, a string for a String field. An unknown field name or a value of the wrong type refuses the mod at parse time, naming the field.
panelIcon	A path under assets/: a PNG, 64×64 (or a multiple, box-filtered down), RGBA.
hudIcon	A file name under assets/loose/, a .tga, named <your mod id>.* (never a bare vanilla-looking name — see “Icons and loose files”).
text	{ "name", "help" } for the panel. Used when the game build supports it (this build does — see “Panel name” below); ignored otherwise, logged once.

Bases

Only these five are clonable in this version. Each one is on the “ordinary” code path that doesn’t special-case its own container name, which is what makes cloning it safe:

Base	Notes
kWeaponBazooka	The reference base; every check below was run against it directly.
kWeaponGrenade
kWeaponHolyHandGrenade
kWeaponBananaBomb	Bomblets spawn as the (unrenamed) vanilla Bananette.
kWeaponGasCanister	Its explosion does no direct damage, so a damage multiplier has no visible effect; poison from a clone isn’t distinguished from poison from the vanilla canister.

Weapons that pick their behaviour from their own name (Sheep, Homing Missile, Poison Arrow, guns, melee, and utility items), and cell takeover beyond 29/39/40, are not in this version.

Lua: wum.sim.weapons

This is a sim-script API (entry.sim, Lua 5.0 with float numbers — see the README’s “Sim scripts” section for the base rules). It isn’t part of lua-api.md, which covers only the always-on client Sandbox; the sim match VM’s weapon surface is documented here instead.

Function	Notes
wum.sim.weapons.list()	An array of {name, base, cell, k, live} for every declared clone.
wum.sim.weapons.on(event, name, fn)	event is "fire", "tick", "impact" or "explosion"; name is a clone’s name or "*" for every clone. Returns a handle for off.
wum.sim.weapons.off(handle)	Removes a subscription.

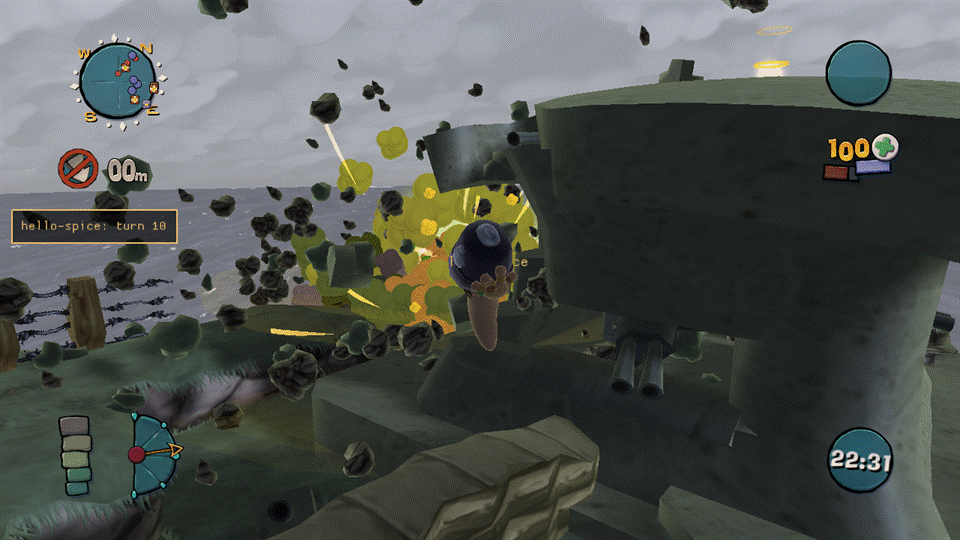

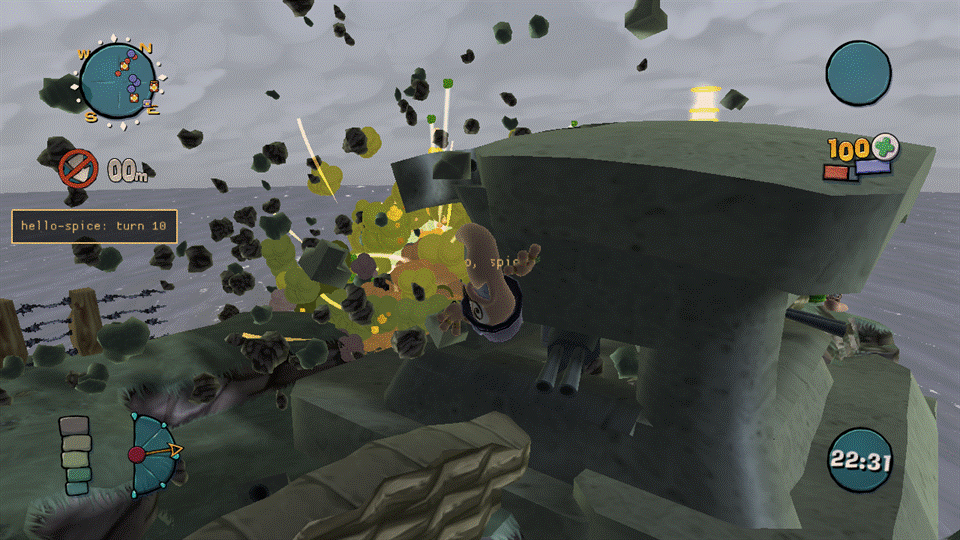

wum.sim.weapons.explode(dx, dy, dz)	Inside an explosion handler only: one more explosion at the original position + (dx, dy, dz), run after the original, in the same tick. Returns true, or nil, reason — "not in explosion" outside a handler, "full" past [Weapons] ExtraPerExplosion (default 8) extras from one explosion, "range" if any axis is over 2000 units. Extras raise no further events (no recursion).
wum.sim.weapons.active()	The clone name the active worm currently holds, or nil.

fn(event, name, tick, ...) gets the event name, the clone name, the sim tick, and then:

• fire: nothing further.
• tick: no position in this build. A future build may add x, y, z once the engine’s live payload position is found (see “What doesn’t work yet”); until then, only rely on event, name and tick.
• impact: the Payload.* message name (Payload.CollideWithLand, Payload.CollideWithWater, Payload.DisarmPlane, Payload.ExpiryPlane, …).
• explosion: x, y, z, the explosion’s position. Call wum.sim.weapons.explode from inside this handler only.

There’s no damage event in this version (a clone’s damage isn’t reliably attributable — see below), and no spawn or detonate event.

Determinism. Every event fires at the same logic tick on every peer, with no randomness added and no message posted by Melange itself — a handler is exactly as deterministic as any other sim-script code. Keep handlers side-effect-light: they run under the same per-call instruction budget as any other sim callback ([SimBridge] InstrPerCall), and a handler that faults three times is disabled for the rest of the match.

To read or change a clone’s own fields during the match’s Init (once, before the first turn), use the existing wum.sim.weapon(name):get(field) / :set(field, value) from the README’s Sim scripts table, by the clone’s name.

Icons and loose files

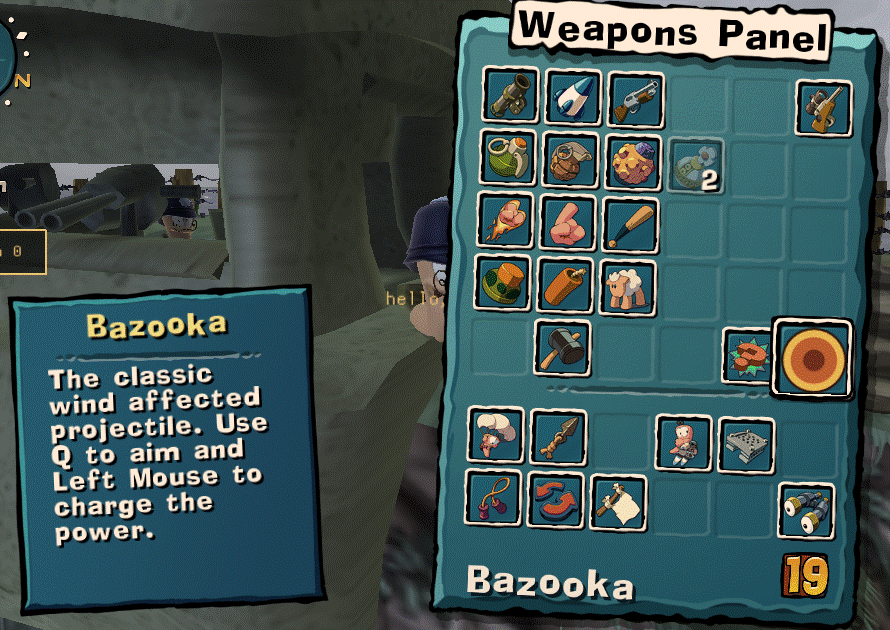

• Panel icon (panelIcon): decoded once at start-up and written into a free slot of the weapon panel’s own icon sheet the next time it’s built. It shows in the weapon panel automatically; nothing else to do.
• HUD icon (hudIcon): a loose .tga under assets/loose/. It must be named <your mod id>.<anything> — mega-bazooka.hud.tga for this mod — never a bare name that could shadow a vanilla file. Shown on the HUD while the clone is selected.
• Both are presentation only: they never affect the simulation, and a mismatched or missing icon file is refused at load with a reason, not a crash.

Meshes and sounds

• PayloadGraphicsResourceID (and Payload2ndGraphicsResourceID) can name any vanilla payload mesh already used in the match — this is confirmed working (the sample points its shell at Grenade.Payload, scaled up with Scale). A mod-supplied custom mesh doesn’t work yet: the engine’s bank loader only accepts data banks, and a data bank has no mesh list, so an xomtool-built mesh bank can’t be loaded this way. xomtool’s mesh/glTF conversion still exists for when a loader is found; until then, point mesh fields at vanilla resource names only. (The bank field itself works: it carries weapon properties.)
• *Sfx fields (LaunchSfx, DetonationSfx, …) can be reassigned to any existing FMOD event name your game already ships (weapons/SheepBaa, for example). Whether this has an audible effect hasn’t been confirmed in this build — the sample sets LaunchSfx as a demonstration, but treat it as unverified until your own test hears it. New sound projects (your own .fev/.fsb) aren’t supported.

Online behaviour

• A match only creates clones when every peer’s content matches (the same rule M2 already uses for sim mods in general). If a peer is missing your mod, or has a different version of it, clones stay off for everyone in that match — nothing is ever sent about a clone to a peer that doesn’t have it.
• In this build, a host whose content declares clones refuses to start the match against a peer that doesn’t match ([Handshake] WeaponGate=refuse), instead of silently playing with clones off. The lobby panel names which peer and what differs, and the lobby itself stays open — fix the mismatch (or have the other player update) and start again.
• If you join a lobby that uses clone weapons you don’t have (or have a different version of), you get a choice, never an automatic kick: a modal names the mods and lets you leave.
• A clone match replays like any other. A replay with no content mods plays back fine; one recorded with content mods by an older Melange, or with a different version of your weapon content, is refused as “content differs”, the same as any other content mismatch.

Troubleshooting

• The weapons jlog category (and the overlay/Oasis log) records every declared clone, the free-cell table, and whether the clone hooks are actually installed. If your clone doesn’t show up, check the Mods page first — a manifest error refuses the whole mod with a specific reason (an unknown set field, a taken cell, a bad name, …).
• A clone only exists inside a match that allows sim mods. In the menu, or in a match where clones were refused (a content mismatch online), everything about the panel, the weapon names and the icon sheet is byte-identical to vanilla — there is nothing to see, and that’s by design.

What doesn’t work yet

This build is honest about a few gaps rather than silently doing less than it says:

• tick carries no position. The engine evaluates a flying payload’s position on demand from data this build couldn’t turn into a live x, y, z every tick; only the explosion event has a position. If you need a projectile’s position mid-flight, you don’t have one yet.
• No damage event. A clone’s explosion damage happens inside the same engine call that posts the explosion, which is good for determinism but means it can’t be cleanly separated as its own event yet.
• No custom mesh. See “Meshes and sounds” above — point mesh fields at vanilla resource names.
• Sound fields are unverified. See “Meshes and sounds” above.
• Separate clone ammo and delay, and name-compare bases (Sheep, Homing Missile, …) are not in this version.
